SSD ACC COOLER M.2 COPPER FAN/CLR-M2FAN AXAGON

Description:

AXAGON CLR-M2FAN
heatsink for M.2 SSD

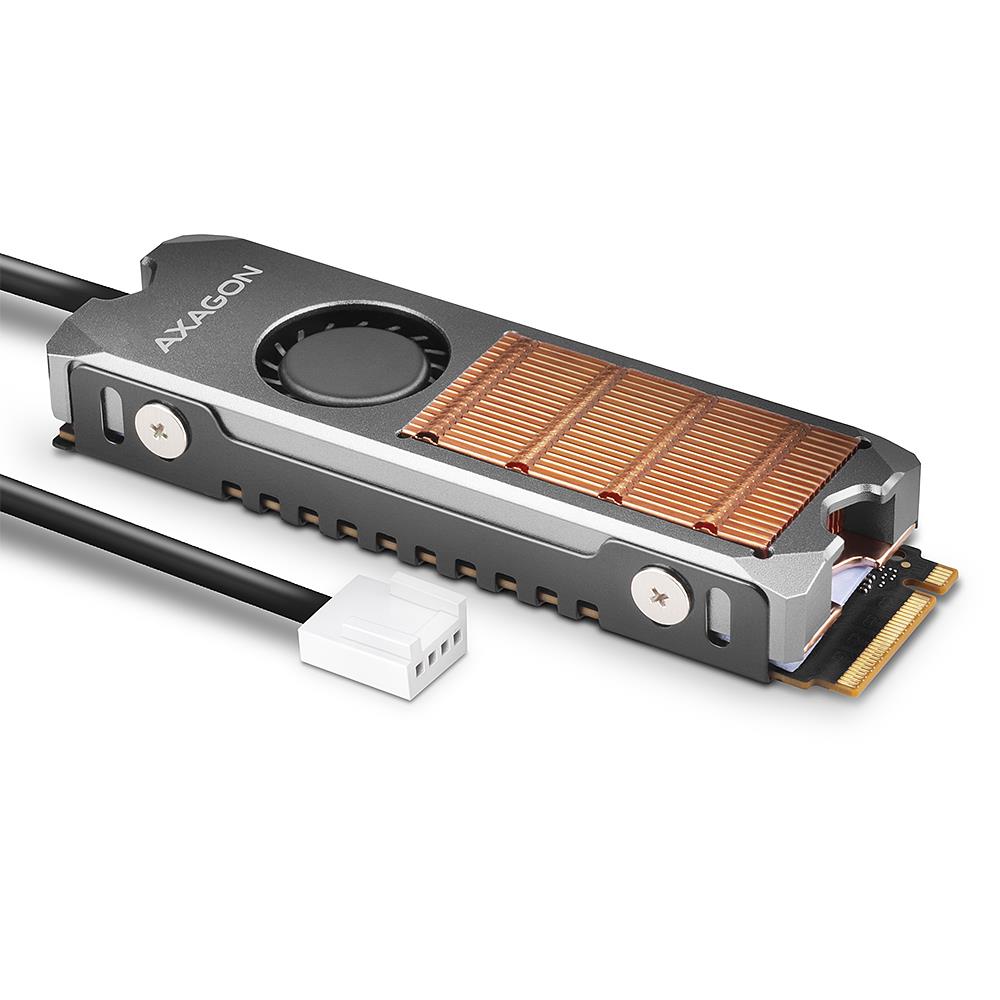

Copper heatsink with fan for single-sided and double-sided M.2 SSD disks, size 2280, height 13 mm.

AXAGON CLR-M2FAN copper heatsink with fan for perfect cooling of high performance M.2 SSD disks, especially NVMe. The universal heatsink can be used for M.2 cards with size 22 x 80 mm. Supplied thermally conductive pads allow heatsink installation for all single-sided as well as double-sided M.2 SSD disks.

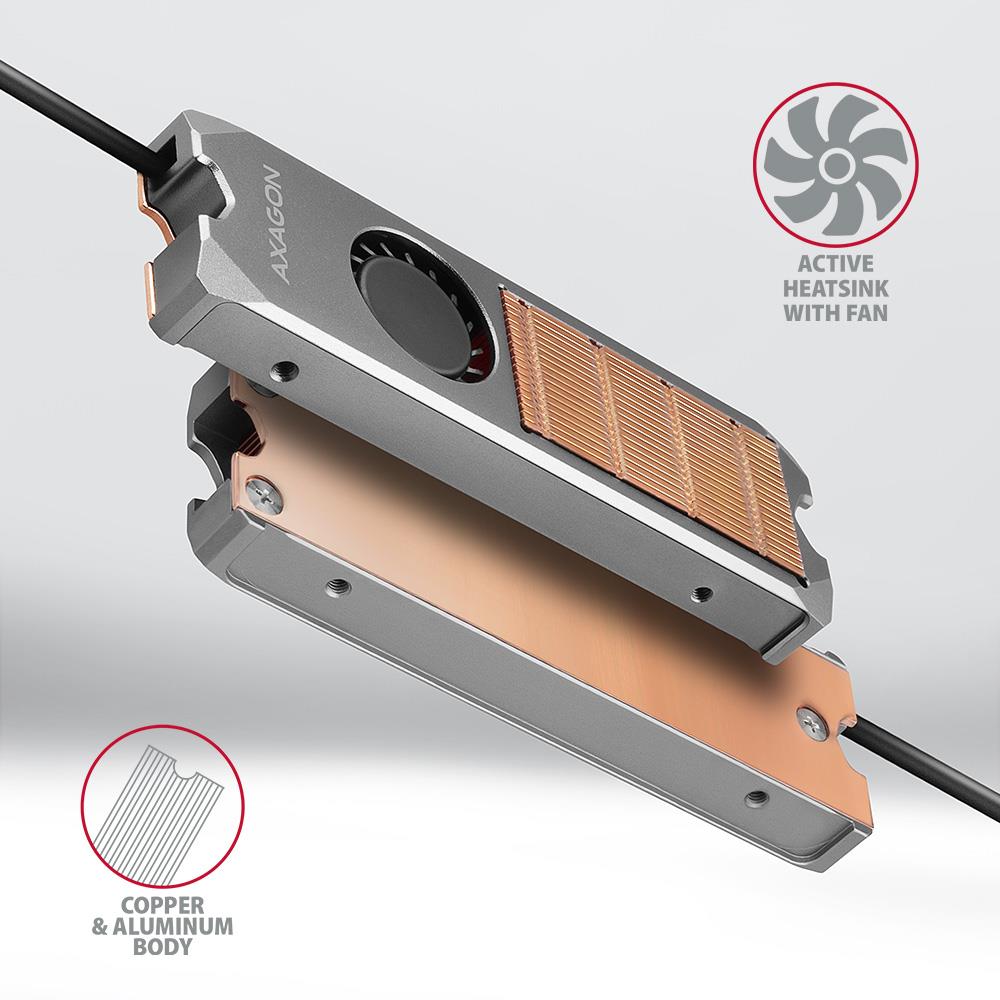

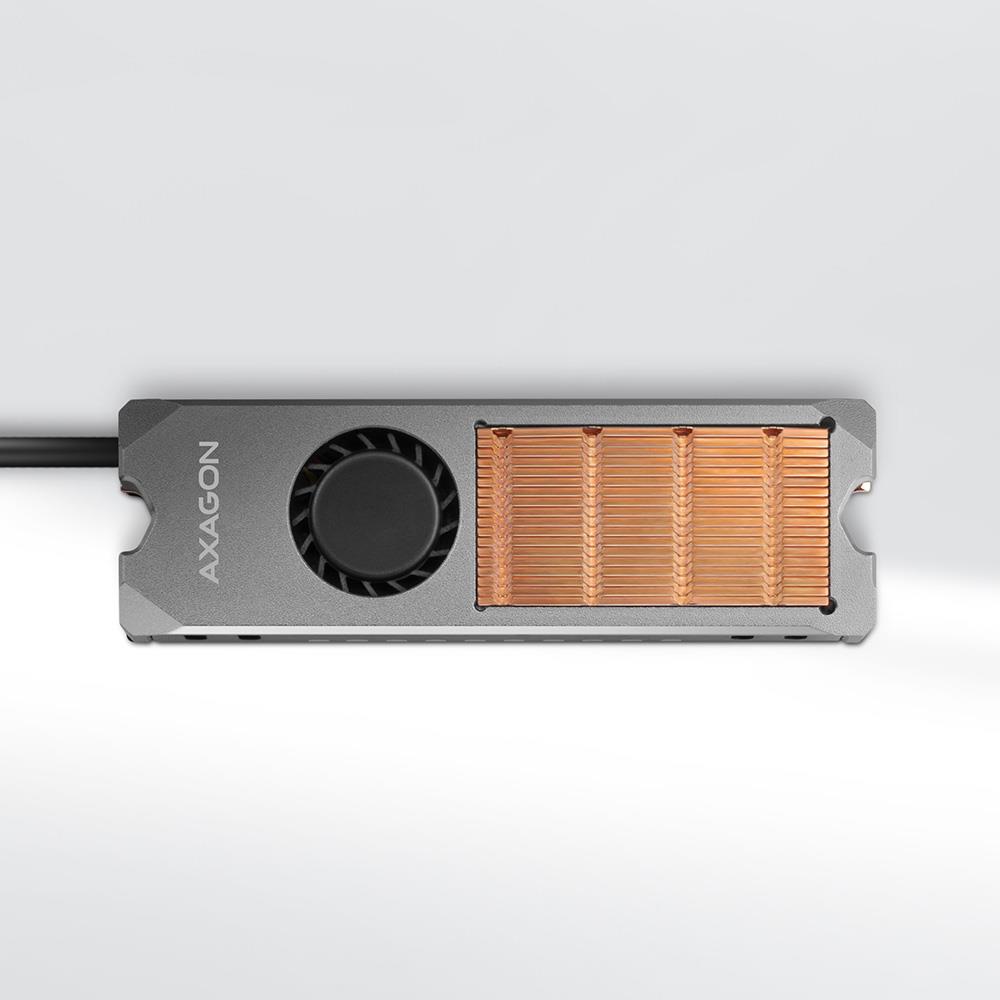

Ribbed copper heatsink core with aluminum body is 8.6 mm high. Inside the body, there is a fan with PWM speed control, which is connected to the computer's motherboard with a 4-pin power connector. The fan speed can be automatically controlled by temperature, to save energy or to reduce noise.

Copper heatsink with fan together with metal bracket assists in optimal dissipation of heat generated during the M.2 SSD operation. It also reduces the drive temperature by up to 30°C. This prolongs the M.2 SSD life and prevents disk slow down, so-called "Thermal Throttling".

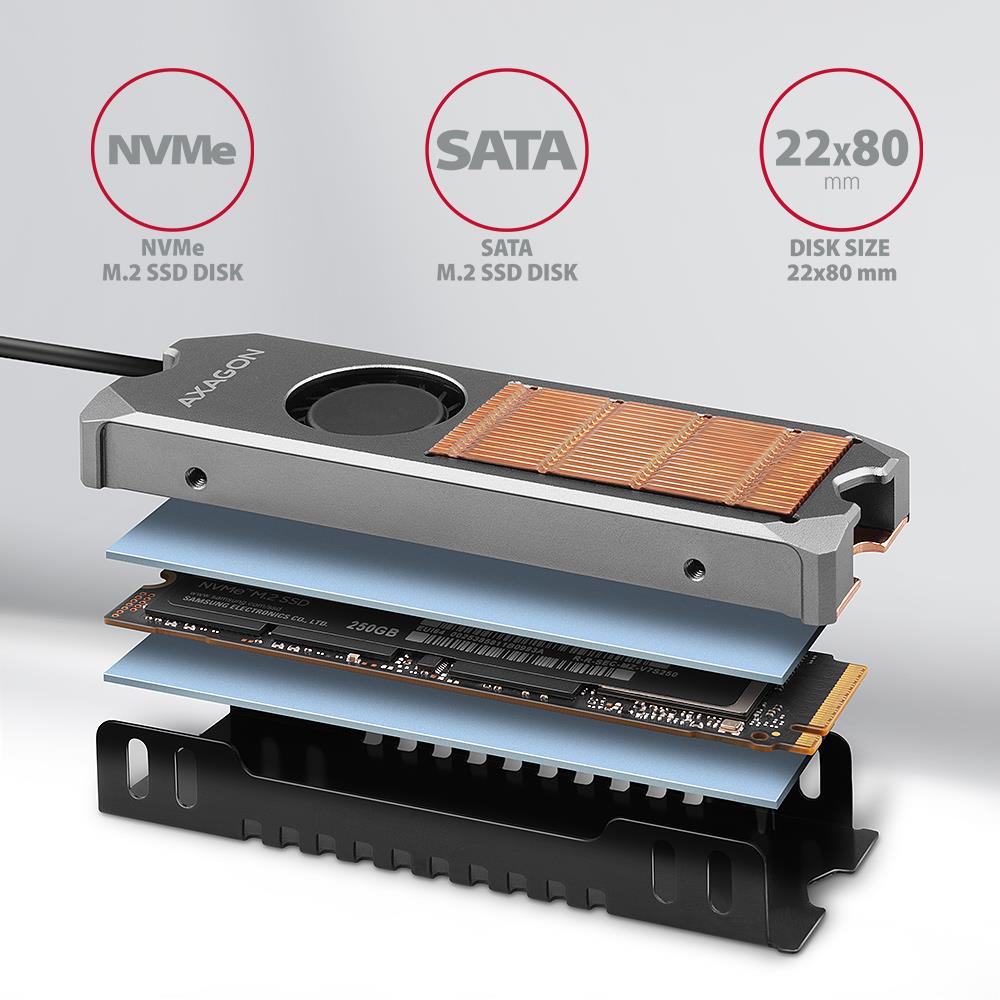

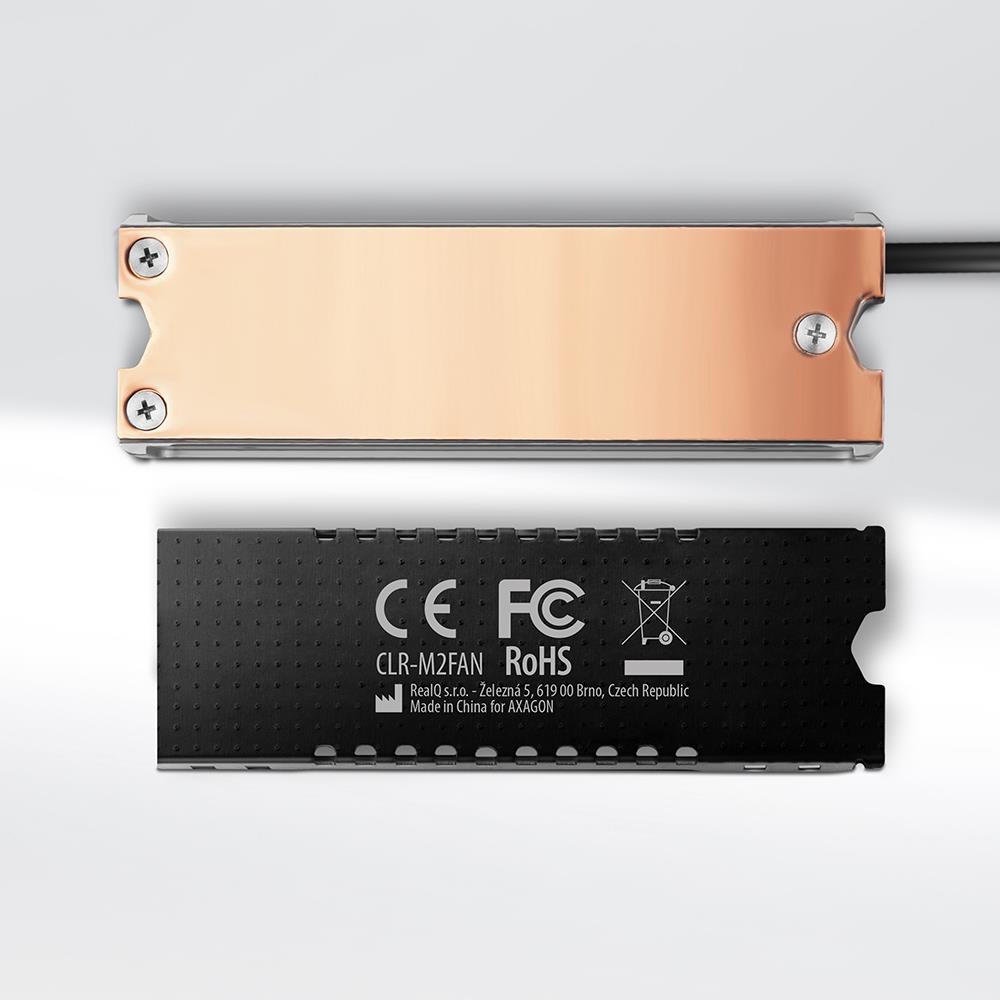

The heatsink can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. Thanks to the metal frame, the heatsink dissipates heat from both sides of the M.2 disk and thus achieves maximum cooling efficiency.

Vendor Homepage: www.axagon.eu/en/produkty/clr-m2fan?ami=222
Category Code: HDA
CnCode: 84145925
Unit Box Height: 0.13
Unit Box Length: 0.025
Unit Box Width: 0.07
Model: CLR-M2FAN
Form Factor: M.2

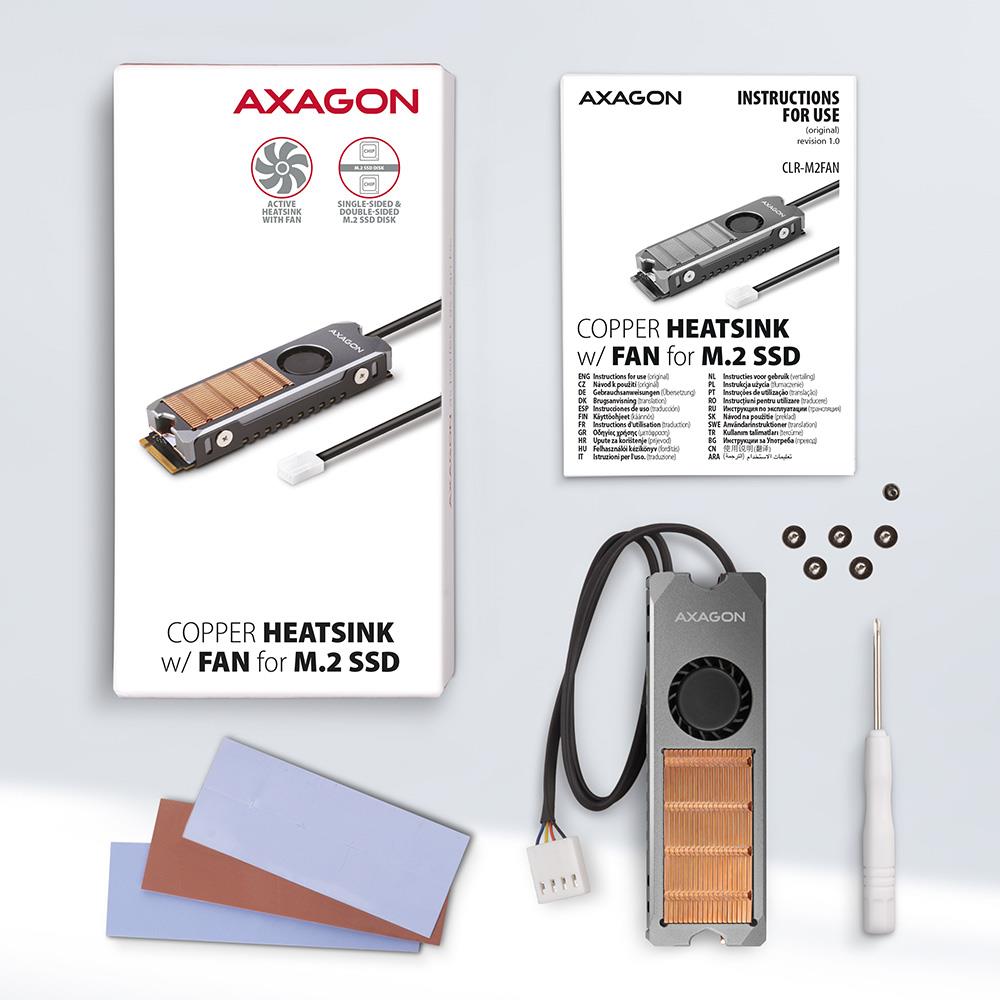

Included Accessories: – passive heatsink, – 3 thermally conductive pads, -mounting material, – quick guide
Colour: Silver
Dimensions: 76 x 24 x 12 mm
Units per Shipping Box: 1
Unit Calculated Volume: 0.0002275
Product Net Weight: 0.045
Unit Calculated Weight: 0.09
