CABLE ADAPTER 4-PIN WITH I/O/PR5MEC21 TELTONIKA
$8.09
| Gamintojas |
|---|
4 in stock
Description
Description:

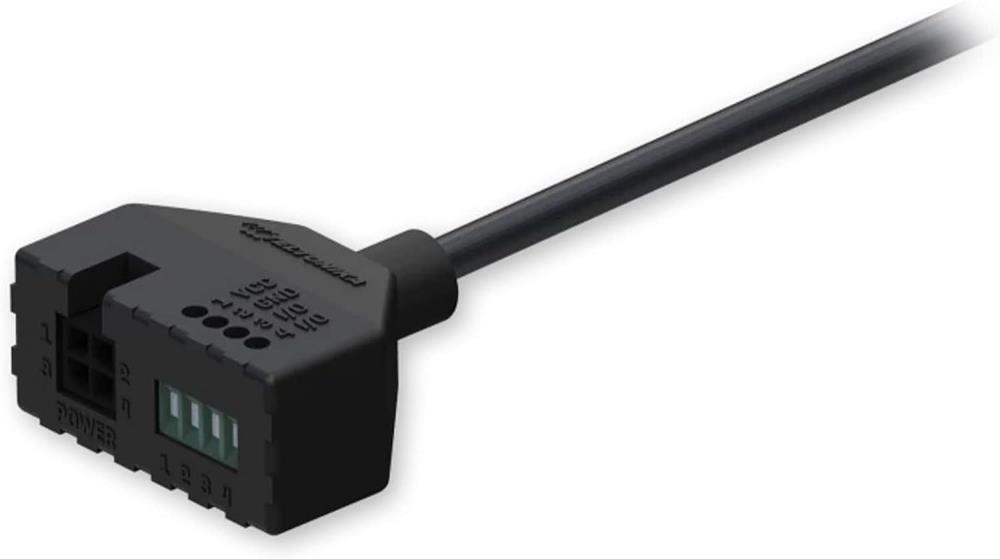

The Teltonika PR5MEC21 is a 4-pin Power Adapter with I/O access. It is a specialized "pigtail" connector used to unlock the advanced input/output features of Teltonika routers.
Where it is used:
It is used in professional and industrial installations where you need more than just power. It allows you to connect external sensors or control devices directly through the router's power port.
-
Vehicle Ignition Detection: Connecting the router to a vehicle’s ignition so it only turns on (or sends a notification) when the engine starts.
-
Remote Control/Switching: Using the router to remotely open gates, barriers, or door locks via SMS or the RMS app.
-
Sensor Monitoring: Connecting digital sensors (like door open/close sensors or liquid level alarms) to trigger alerts.
-
Industrial Control Cabinets: Providing a clean screw-terminal connection for power and data wires without needing to solder or crimp tiny connectors.
Compatible Devices:
It works with almost all Teltonika devices that have a 4-pin power socket:
-
RUT Series: RUT240, RUT241, RUT360, RUT950, RUT955, RUT956.
-
RUTX Series: RUTX09, RUTX11, RUTX14, RUTX50, etc.
-
Gateways: TRB140, TRB141, TRB142, TRB145, TRB500.

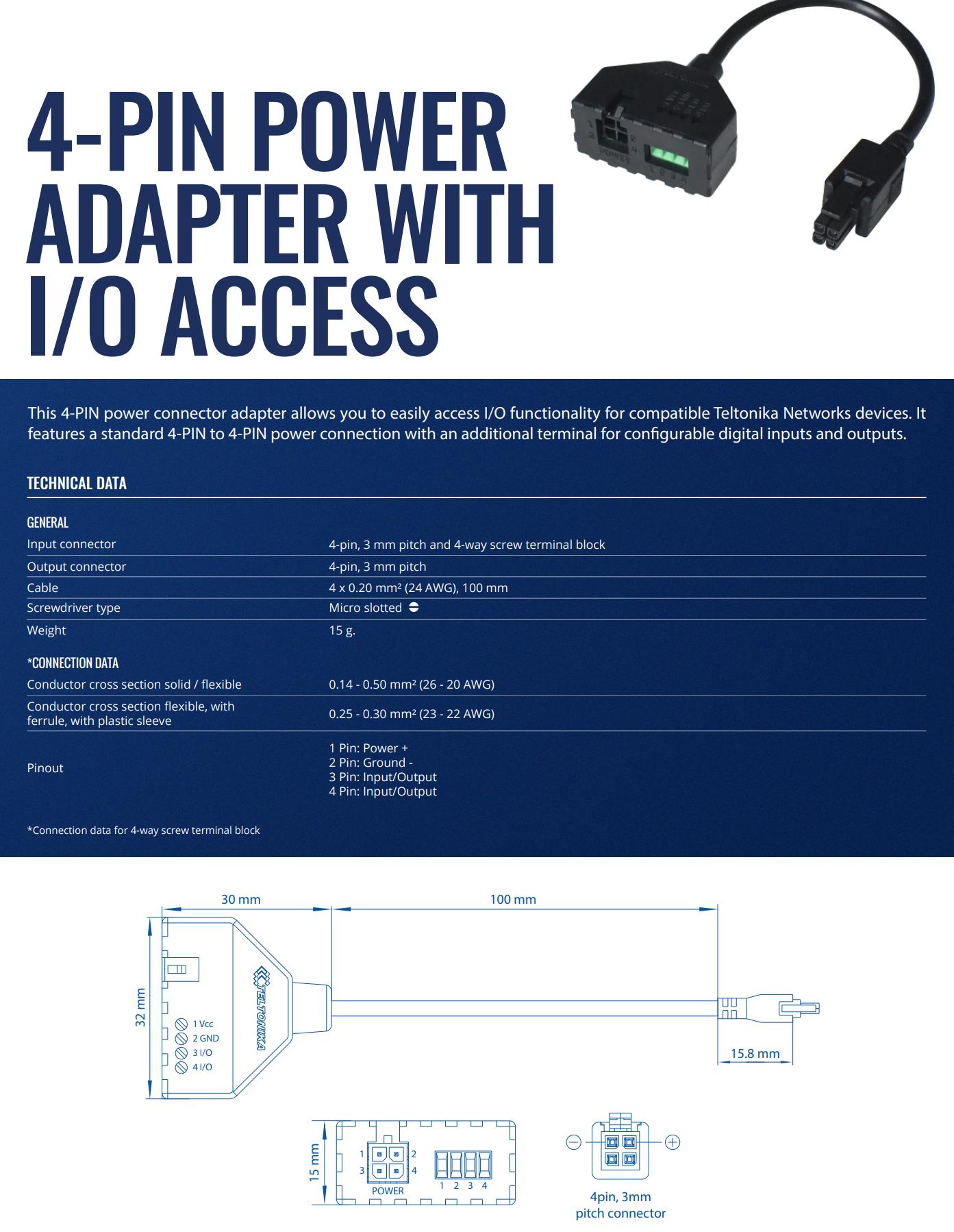

Key Specifications:
-
Connector: 4-pin Micro-Fit to a 4-way screw terminal block.
-
Pinout: * Pin 1: Power (+)
-
Pin 2: Ground (-)
-
Pin 3 & 4: Configurable Input/Output (I/O).
-
In short: Use this adapter if you want to use your router as a mini-controller to sense or switch external equipment.
- Input connector: 4-pin, 3 mm pitch and 4-way screw terminal block

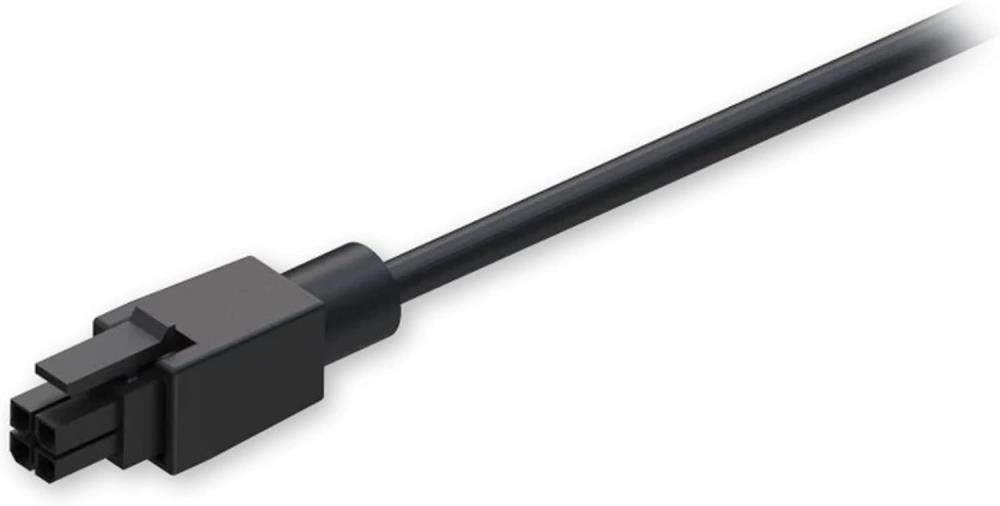

- Output connector: 4-pin, 3 mm pitch
- Cable: 4 x 0.20 mm² (24 AWG), 100 mm
- Screwdriver type: Micro slotted
Vendor Homepage: teltonika-networks.com/products/accessories/powering-options/4-pin-power-adapter-with-io-access-1
Category Code: NCC
CnCode: 85444290
Unit Box Height: 0.03
Unit Box Length: 0.115
Unit Box Width: 0.05
Model: PR5MEC21
Product Type: Cable
Colour: Black
Units per Shipping Box: 1
Unit Calculated Volume: 0.0001725
Product Net Weight: 0.015
Unit Calculated Weight: 0.024
